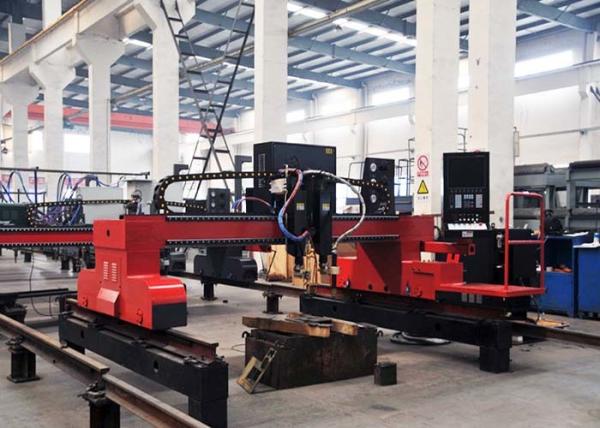

Gantry Type CNC Plasma Gas Cutting Machine with 1 Gas Torch 1
Plasma Torch
Plasma gantry cutting machine is designed to meet the needs of job
shops and manufacturers of all sizes and delivers high-performance
machine for quality production cutting.
This CNC Flame Plasma cutter machine can cut mild steel with Oxygen
fuel gas cutting, and cut high carbon steel, stainless
steel,aluminum, copper and other non-ferrous metal with Plasma
cutting; can configurated as you required.
Thus it is widely applied in industries such as machinery,
automobile, shipbuilding, petro-chemical, war industry, metallurgy,
aerospace, boiler and pressure vessel, locomotive etc.Suitable for
sheet processing, do word, etc., and other advertising equipment
(vacuum molding machine, engraving machine, slotting machine,
etc.,) the formation of advertising word processing line. Dozens of
times higher than that of traditional craft processing efficiency.
Product Features
(1) Tailored track acquires high-intensity, high-speed and
high-precision features.
(2) Human computer interface design makes the machine easy to learn
and operate, and have complete functions.
(3) Equipped with functions of portable CNC cutting and can cut
carbon steel, stainless steel and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which
can be transmitted to the main machine by USB to cut plate into any shape.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.
(8) Plasma THC ( torch height control) device function: By
automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep
good effect of cutting meanwhile,
protect the torch form damage and prolong life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity
switch and dual-speed.
(11) Compatibility of the domestic plasma and foreign-brand plasma.
Technical Parameters:
| Model | CNC3000 | CNC3500 | CNC4000 | CNC5000 | CNC6000 | CNC7000 | CNC8000 |
| Effective Cutting Width (mm) | 2200 | 2700 | 3200 | 4200 | 5200 | 6200 | 7200 |
| Track Width (mm) | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 |
| Effective Cutting Length (m) | 2m less than track length |
| Cutting Thickness(mm) | Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the
plasma). |
| Basic components |
| Cutting Mode | Plasma and Oxygen-fuel / flame |
| Drive Mode | Servo motor, Dual-side |
| Cutting Torch Number | Customization |
| Driving Motor | Panasonic / Yaskawa |
| CNC Controller | Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB |
| Available Plasma Power | Hypertherm, Kjellberg, Thermal Dynamics, ESAB |
| Programming software | Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional |
| Power voltage | 3×380V±10% 50Hz / according to user's local condition |
| Operation language | Multi language,Basic: English... |
Cutting Samples:
